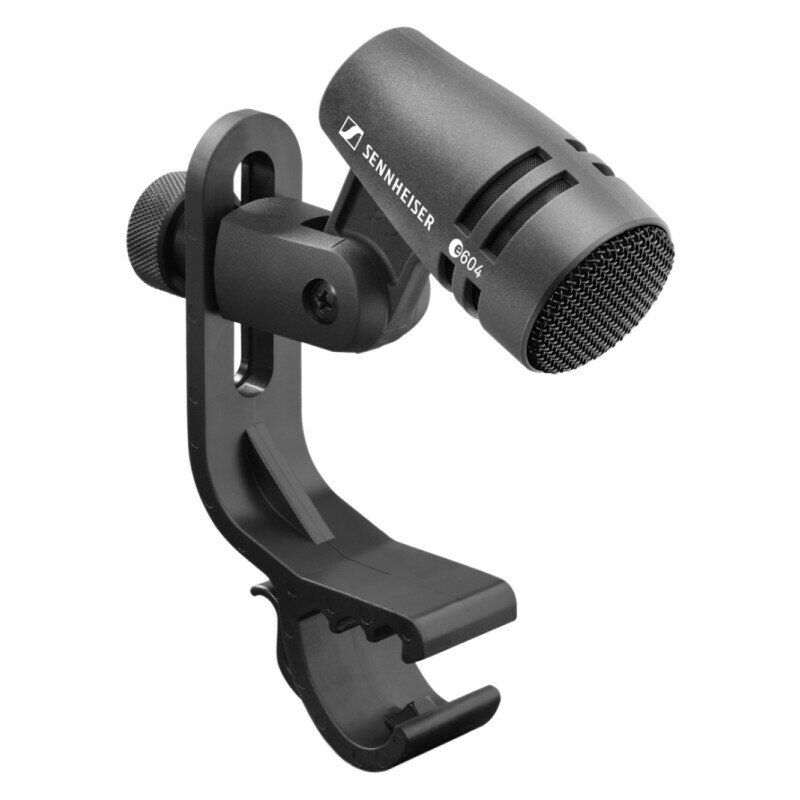

Sennheiser e604

the e 604 is a cardioid microphone especially suitable for use with drums and brass instruments.
features
rugged reinforced glass-fibre body
low sensitivity to impact and handling noise
very high sound pressure handling capability
low distortion microphone
hum compensating coil
easy to position due to compact design
integral stand mount
delivery includes
1 e 604
1 drum clip
1 pouch

technical data
frequency response 40.....18000 hz
sensitivity in free field, no load (1khz) 1,8 mv/pa
min. terminating impedance 1000 ohm
dimensions d 33 x 59 mm
weight w/o cable 60 g
polar pattern


frequency response


profile
cardioid instrument microphone, hum compensating coil, frequency response 40 hz - 18 khz, sensitivity (free field, no load) 1.8 mv/pa at 1 khz, nominal impedance 350 ohm, min. terminating impedance 1 kohm, dimensions 33 x 59 mm, weight 60 g.

glossary
frequency response


sensitivity in free field, no load (1khz)
voltage measured at the unloaded output of a microphone which is exposed to a sound pressure of 1 pa and a frequency of 1 khz in an anechoic chamber.

min. terminating impedance
impedance at which the connected unit meets the specified technical data. if the unit is connected to a lower impedance, it will usually have a lower output voltage or a greater distortion.

dimensions


weight w/o cable


glossary
