Proel nc3mxx neutrik.spina.volante.xlr.3.poli.nickel

the next generation of the worldwide accepted standard of xlr cable connectors. the successor of the x series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

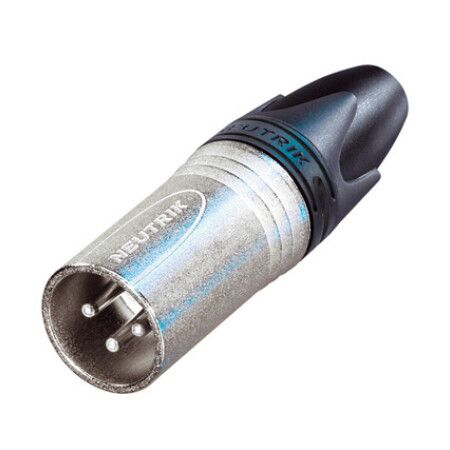

3 pole male cable connector with nickel housing and silver contacts.



features e benefits

male connector with improved locking recess without window, more stringent housing increases durability
improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
boot with polyurethane gland gives high protection to cable bending stresses
colored rings and boots available for coding or identification
sleek and ergonomic design - valuable and handy
rugged zinc diecast shell, longlasting and dependable
internal thread on shell is well proteced against any damage
product
connector type xlr
gender male
electrical
capacitance between contacts = 4 pf
contact resistance = 3 mo
dielectric strength 1,5 kvdc
insulation resistance > 2 go (initial)
insulation resistance > 1 go (after damp heat test)
rated current per contact 16 a
rated voltage 50 v
mechanical
cable o.d. 3.5 - 8.0 mm
insertion force = 20 n
withdrawal force = 20 n
lifetime > 1000 mating cycles
wire size max. 2.5 mm
wire size max. 14 awg
wiring solder contacts
locking device latch lock
material
boot polyuretan
bushing polyamide (pa 6 15% gr)
contact plating 2 m ag
contacts brass (cuzn39pb3)
insert polyamide (pa 6.6 30 % gr)
locking element zinc diecast (znal4cu1)
shell zinc diecast (znal4cu1)
shell plating nickel
strain relief polyacetal (pom)
environmental
flammability ul 94 hb
standard compliance iec 61076-2-103
protection class ip 40
solderability complies with iec 68-2-20
temperature range -30 c to +80 c
