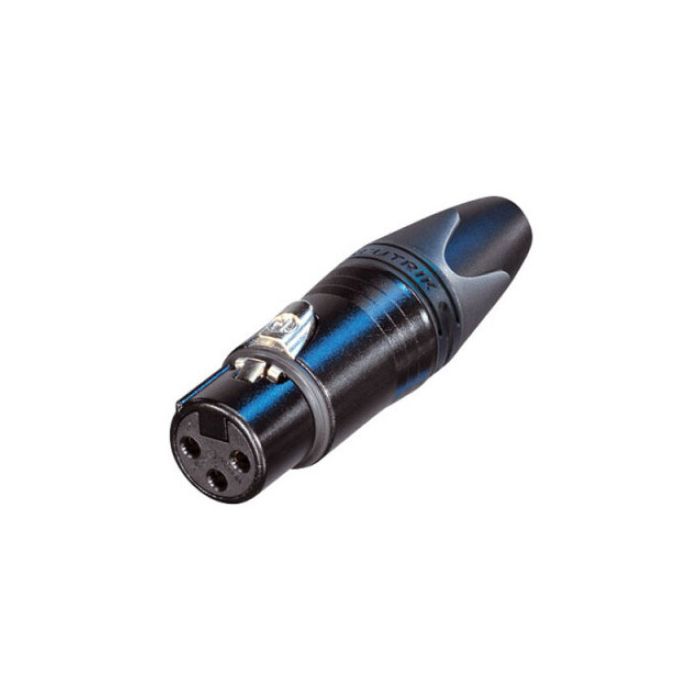

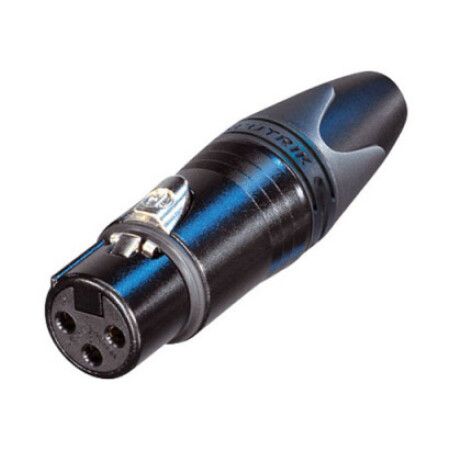

Proel nc3fxxbag neutrik.pr.vol.3p.sold.stop.silver

Electrical:
Capacitance between contacts = 4 pF
Contact resistance = 3 mO (inner)
Rated current per contact 16 A
Rated voltage 50 V
Mechanical:
Cabel O.D. 3,5 – 8,0 mm
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Material:
Boot Polyurethan
Contacts Brass
Insert Polyamide
Shell Zinc diecast
Shell plating Nickel
Strain relief Polyacetal
Environmental:
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
