nc3fxx-b



the next generation of the worldwide accepted standard of xlr cable connectors. the successor of the x series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

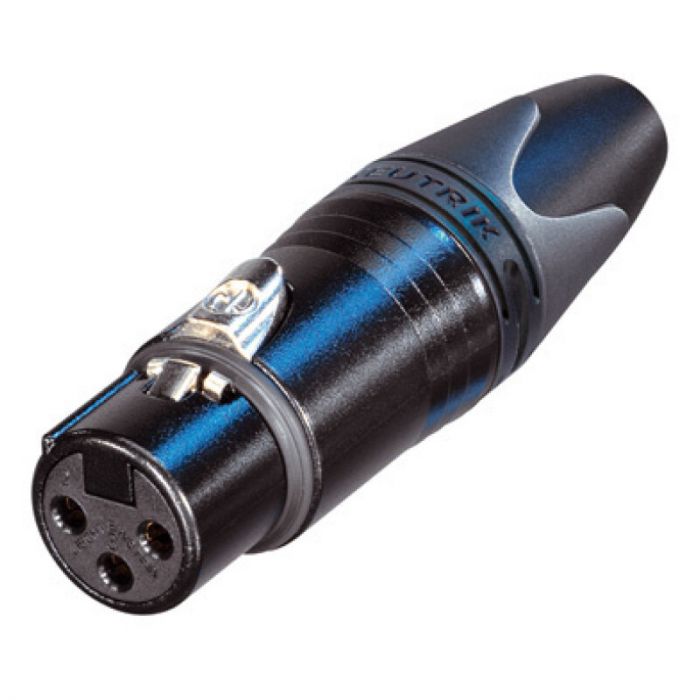

3 pole female cable connector with black metal housing and gold contacts.



features e benefits

unique cage design of female contact for low contact resistance and high integrity
female contact incorporates a solder barrier to prevent solder running into the contact mating area
female connector with improved solid metal latch which is larger and easier to handle
additional ground spring contacts for better shell ground continuity
improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
boot with polyurethane gland gives high protection to cable bending stresses
colored rings and boots available for coding or identification
sleek and ergonomic design - valuable and handy
rugged zinc diecast shell, longlasting and dependable
internal thread on shell is well proteced against any damage

product
connector type xlr
gender female
electrical
capacitance between contacts = 4 pf
contact resistance = 3 mo
dielectric strength 1,5 kvdc
insulation resistance > 2 go (initial)
insulation resistance > 1 go (after damp heat test)
rated current per contact 16 a
rated voltage 50 v
mechanical
cable o.d. 3.5 - 8.0 mm
insertion force = 20 n
withdrawal force = 20 n
lifetime > 1000 mating cycles
wire size max. 2.5 mm
wire size max. 14 awg
wiring solder contacts
locking device latch lock
material
boot polyuretan
bushing polyamide (pa 6 15% gr)
contact plating 0.2 m au hard alloy over 2 m ni
contacts bronze (cusn8)
insert polyamide (pa 6.6 30 % gr)
locking element zinc diecast (znal4cu1) / ck 67 (spring)
shell zinc diecast (znal4cu1)
shell plating black chromium
strain relief polyacetal (pom)
environmental
flammability ul 94 hb
standard compliance iec 61076-2-103
protection class ip 40
solderability complies with iec 68-2-20
temperature range -30 c to +80 c
