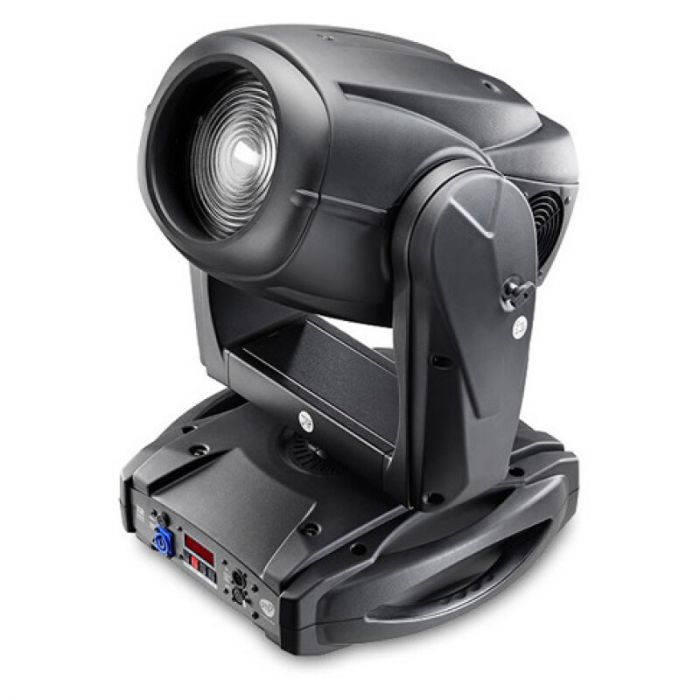

DTS dts xr700 wash ottime condizioni

lamp
* philips msr 575/2 lamp (49.000 lumens)
* base type gx9,5
optical group
* 19.300 lux at 5 m (14)
* fresnel lens 200 mm combined with a dichroic glass reflector
* 16-bit motorized linear zoom (14- 26)
* rotating and indexable beam shaper (0-180)
* 2 frost filter
colour generation
* cmy linear system
* colour wheel (8 colours + open) with linear selection for perfect 2-colour beams
* 2 colour conversion filters (3.200k / 5.600k)
interface / control / programming
* led display
* 4 soft-keys (control / management / monitoring of the main parameters)
* controlled via dmx 512 standard digital communication protocol
* wireless ready
* internal operating system updatable via d.t.s. red box interface and hyperterminal program on windows based pc
dmx
16 dmx channels
pan e tilt
* far (free axis rotation) available
* 16-bit movement resolution
* pan 540 (2,8 sec.); tilt 270 (2 sec.)
* 4 selectable speed ranges
* pan/tilt locking system with recessed buttons
* automatic pan/tilt repositioning in case of knocks
power supply
* electronic ballast; 90-260 v 50 / 60 hz
* electro-magnetic ballast; 230 v 50 / 60 hz
* power consumption: 750 w
connectors
* dmx: 4 xlr connectors (3-pole in and out; 5-pole in and out) by neutrik;
* power supply: powercon connector by neutrik
operating ambient temperature
-10 / 40
weight
25 kg (electronic ballast);
29 kg (electro-magnetic ballast)
internal safety devices
* overvoltage circuit protection and overtemperature circuit protection
international certifications
safety: en 60598-1: 1993
en 60598-2-17: 1989
a1-a3: 1993
emc: en 55015

included items

* user's manual
* 1 x philips msr 575/2 lamp
* 1 x powercon male cable connector (cod. 0520p014)
* 1 x xlr 5 pins male cable connector (cod. 0508b028)
* 1 x xlr 5 pins female cable connector (cod. 0508b027)
* 2 x c clamp g100 black/professional (max. load. 200kg) (cod. 0521a015)
* omega clamp with ''fast lock'' connection 1/4 turn 1 couple (2 pieces) (cod. 02k00467)

packing
(lxdxh) 550 x 440 x 800 mm
36 kg (eloctromagnetic ballast)
32 kg (electronic ballast)
